Power Tools

Tooling and molding for outdoor tools.

Discuss molded parts and tooling for outdoor and mowing equipment. Supply drawings and operating conditions; complete-tool manufacture is outside scope.

INDUSTRY CONTEXT

Tool housings connect user handling, structural protection and service access.

Housing halves and covers must organize grip zones, internal supports, vents, fastening points and adjoining-component clearances as one part system.

—

Grip & handling

External geometry establishes user-contact zones and the boundaries around controls.

—

Structural protection

Ribs, bosses and wall transitions support the housing around internal components.

—

Ventilation & access

Openings and removable covers connect airflow, service and assembly requirements.

—

Fastening interfaces

Screws, inserts, clips and locating features organize the housing relationship.

PRODUCT / COMPONENT CONTEXT

Specify the housing and fastening features.

Internal ribs, bosses, inserts, battery and control openings, texture zones and joining edges translate the tool form into component-level manufacturing decisions.

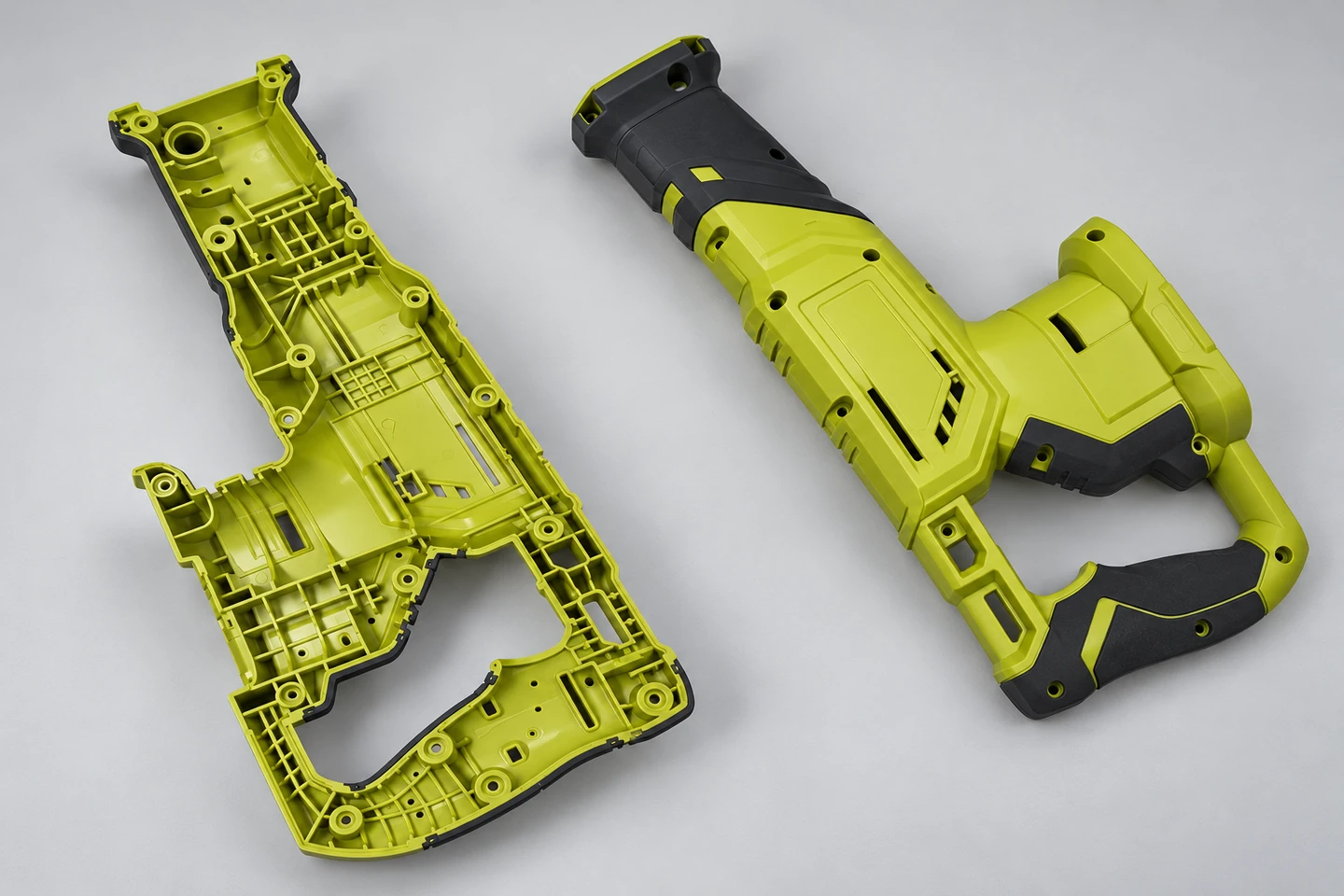

Molded tool-housing halves showing ribs, bosses and fastening interfaces.
Molded housing / tooling context

Illustrative housing features for discussing a part enquiry; not a delivered tool or customer project.

Housing halves

Joining edges and outer surfaces connect appearance, protection and assembly.

Ribs & bosses

Internal structures support fastening and adjoining-component placement.

Inserts & fasteners

Retention features require defined positions and access conditions.

Openings & controls

Vents, triggers and access points establish local interface geometry.

MANUFACTURING REQUIREMENTS

Define the housing conditions that tooling and molding must maintain.

The review basis should connect part geometry, material direction, fit, surface condition and assembly access.

01

Geometry definition

Identify joining edges, internal supports, openings and control interfaces.

02

Material direction

Clarify the working material basis and areas affected by handling or exposure.

03

Fit & fastening

Define locating features, inserts, fasteners and adjoining-part relationships.

04

Surface condition

Establish visible and user-touch areas for comparison.

05

Revision control

Keep drawings, samples and affected manufacturing decisions aligned.

Power & Outdoor Tools project information

Parts to identify
Identify the molded part for the outdoor tool or equipment application.
Inputs to provide
Provide resin, grip/mating interfaces, load, outdoor exposure and quantity requirements.
Related Manufacturing Capabilities
Injection tooling, molding and component-level secondary operations.
Checks to agree
Agree fit, visual references and specified mechanical or environmental checks.

CONNECTED MANUFACTURING

From housing definition to coordinated component review.

A shared component basis connects tooling, molding, downstream work and verification around the same interfaces.

01

Define

Clarify housing geometry, material direction, fastening and access.

02

Connect

Align tooling and molding decisions with downstream assembly needs.

03

Review

Compare part and assembled condition against the current reference.

QUALITY & RISK CONTROL

Review the interfaces that influence fit, handling and assembly.

Quality priorities remain tied to the stated component requirement and current revision.

—

Dimensional review

Check joining edges, locating features and critical interfaces.

—

Surface review

Compare visible and user-touch areas with the agreed basis.

—

Fastening checks

Review inserts, bosses, clips and assembly access.

—

Assembly review

Confirm housing alignment and adjoining-component relationships.

View QualityContinue to the JTO quality framework.

PROJECT PATH

Agree the project steps and decision points.

Start with available part data. Agree the tooling scope, trial samples, checks and approval responsibilities before production.

  1. 01Input

    Part data, product context and open requirements.

  2. 02Engineering Review

    Geometry, interfaces, material direction and manufacturing questions.

  3. 03Tooling

    Tool-related decisions where required by the component path.

  4. 04Sampling

    Sample condition and comparison basis for the next review.

  5. 05Inspection

    Relevant dimensional, surface and assembly checks.

  6. 06Decision / Production Readiness

    Visible findings, actions and readiness decision.

View Project GuideReview the shared preparation and execution path.

NEXT STEP

Discuss your component requirements.

Email your drawings, material, quantity and target dates to info@jto.global. Use the Project Guide to prepare any remaining inputs.
