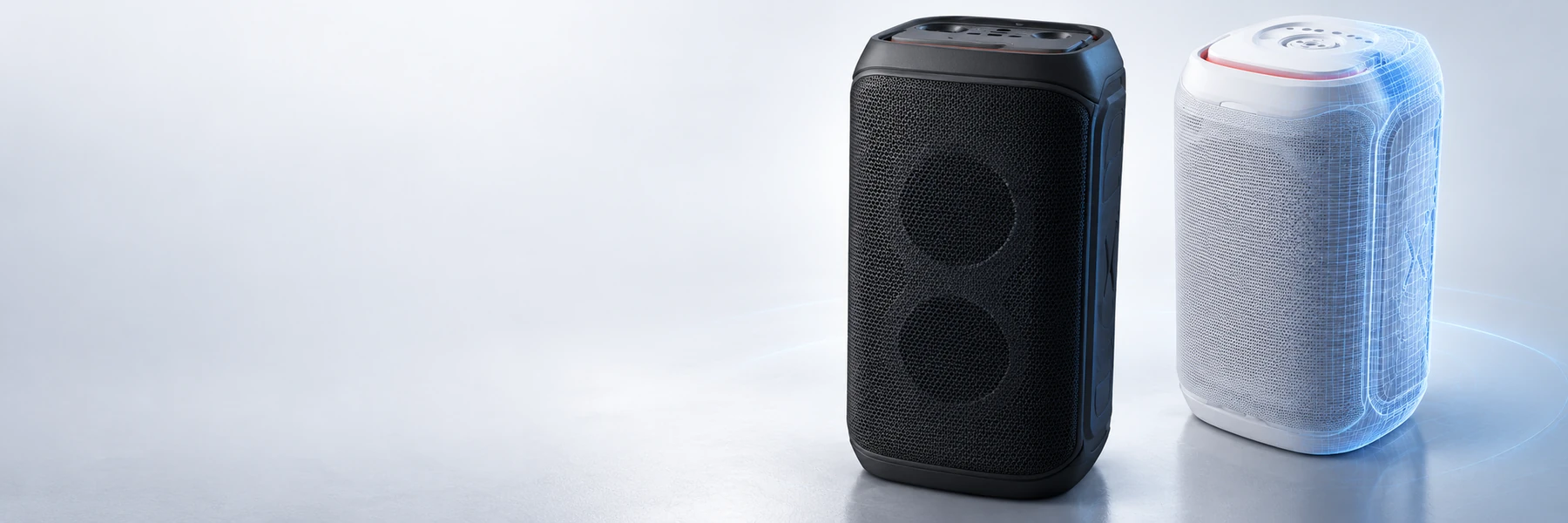

Audio enclosure and molded front-baffle manufacturing context.

Professional Audio

Tooling and molding for professional audio.

Tooling, molding and component operations for plastic audio housings and parts. Define drawings, finish and mating interfaces; no complete audio-system assembly.

INDUSTRY CONTEXT

Specify the housing surfaces and interfaces.

Molded housings, front baffles, grille geometry, bosses and internal ribs bring appearance, fastening and assembly conditions into the same manufacturing review.

—

Component fit

Mating geometry, internal interfaces and fastening conditions establish the fit questions for review.

—

Surface condition

Visible surfaces, texture, color and handling expectations shape the required comparison basis.

—

Structural integration

Housing, support and assembly relationships need to be understood together at component level.

—

Revision sensitivity

Drawing, interface and appearance changes can affect tooling, molding, assembly and verification.

PRODUCT / COMPONENT CONTEXT

Housing, baffle and fastening features.

Housing geometry, visible surfaces, mating features and joining conditions shape how an Audio product moves from design intent into manufacturable parts.

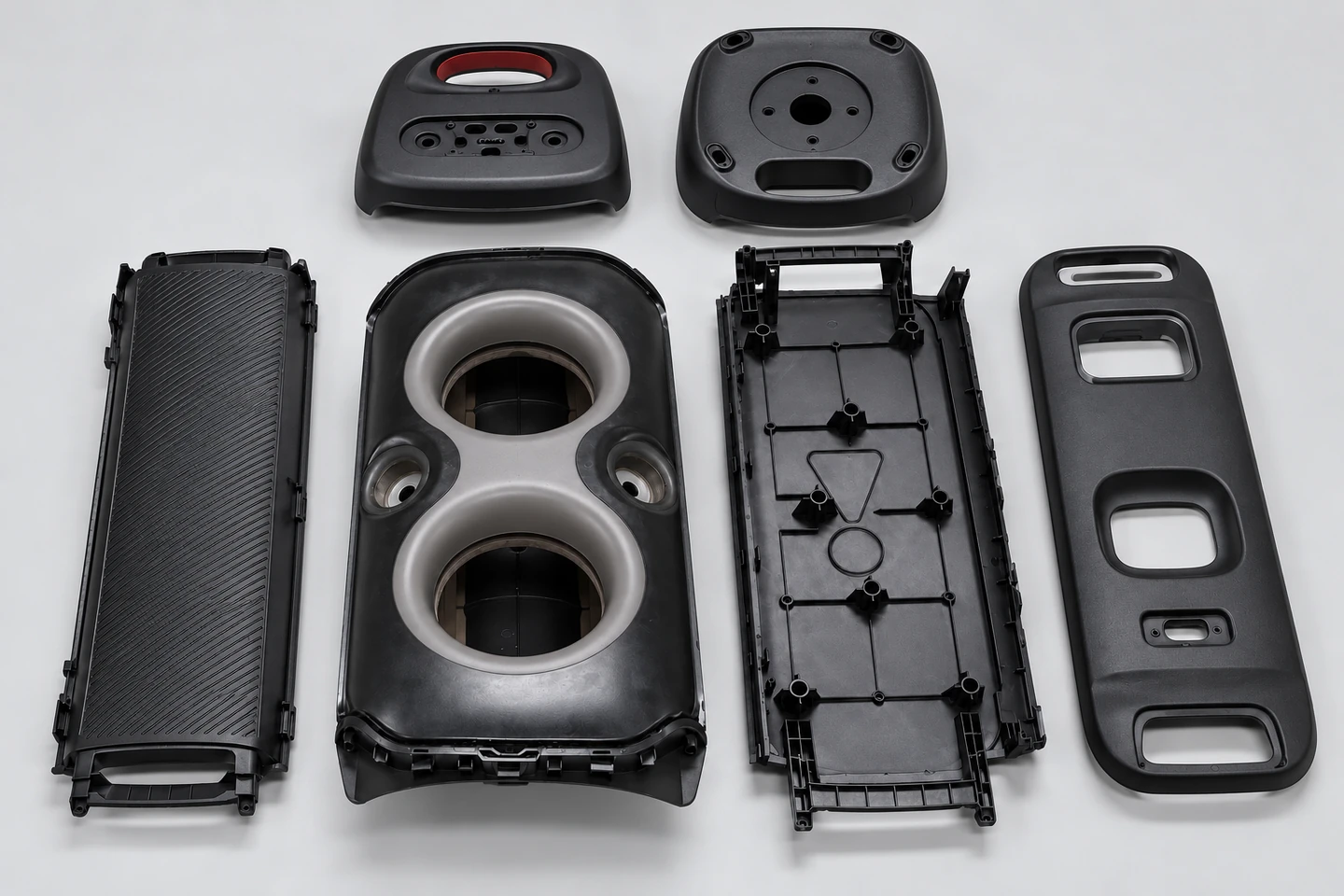

Speaker housing, front frame and component interface.
Molded enclosure / baffle context

Illustrative audio component features, not a customer product or project record.

Housing & Covers

Housing geometry connects external form, internal support and the space available for adjoining parts.

Visible / Cosmetic Surfaces

Texture, color, finish and handling conditions shape how visible component surfaces are reviewed.

Interfaces & Fit

Mating features, frames, brackets and mounting points establish the critical fit relationships.

Assembly Relationships

Joining, alignment, fastening and access conditions connect individual parts to the finished assembly.

MANUFACTURING REQUIREMENTS

Define the component conditions that guide manufacturing review.

Each priority defines what must remain consistent as design decisions move into tooling, molding and assembly.

01

Dimensional consistency

Define the dimensions and interfaces that need repeatable review references.

02

Surface condition

Clarify visible areas, texture, color, finish and comparison expectations.

03

Fit & interface control

Identify critical mating conditions, alignment references and assembly interfaces.

04

Assembly consistency

Establish the joining, fastening, positioning and handling requirements.

05

Revision control

Keep drawings, samples, decisions and affected manufacturing stages aligned.

Audio Systems project information

Parts to identify
Identify the molded housing, cover or other plastic part to be quoted.
Inputs to provide
Provide resin, cosmetic surfaces, mating interfaces, quantity and any acoustic-related requirements.
Related Manufacturing Capabilities
Injection tooling, molding and component finishing/assembly; final scope follows the part review.
Checks to agree
Agree dimensions, surface/colour references, fit and any application-specific checks.

CONNECTED MANUFACTURING

From component requirements to controlled manufacturing decisions.

A clear requirement basis lets tooling, molding, secondary process, assembly and review points work as one project system.

01

Define

Understand component geometry, surface expectations, interfaces and assembly conditions.

02

Connect

Align tooling, molding, secondary process and assembly around the same requirement basis.

03

Review

Maintain clear review points through sampling, inspection and production readiness.

QUALITY & RISK CONTROL

Agree the part-level checks.

Quality review stays close to the component requirements defined earlier in the project, connecting dimensional, surface, assembly and documentation checks to the applicable revision.

—

Dimensional review

Connect critical interfaces to the agreed drawing and comparison basis.

—

Surface review

Identify visible areas and the relevant finish, color and handling references.

—

Assembly checks

Review alignment, joining, fastening and finished-condition expectations.

—

Material / process documentation

Connect current material, process, sample and review records to the applicable revision.

View QualityContinue to the JTO quality framework.

PROJECT PATH

Agree the project steps and decision points.

Start with available part data. Agree the tooling scope, trial samples, checks and approval responsibilities before production.

  1. 01Input

    Part data, product context and open requirements.

  2. 02Engineering Review

    Geometry, interfaces, material direction and manufacturing questions.

  3. 03Tooling

    Tool-related decisions where required by the component path.

  4. 04Sampling

    Sample condition and comparison basis for the next review.

  5. 05Inspection

    Relevant dimensional, surface and assembly checks.

  6. 06Decision / Production Readiness

    Visible findings, actions and readiness decision.

View Project GuideReview the shared preparation and execution path.

NEXT STEP

Discuss your component requirements.

Email your drawings, material, quantity and target dates to info@jto.global. Use the Project Guide to prepare any remaining inputs.
